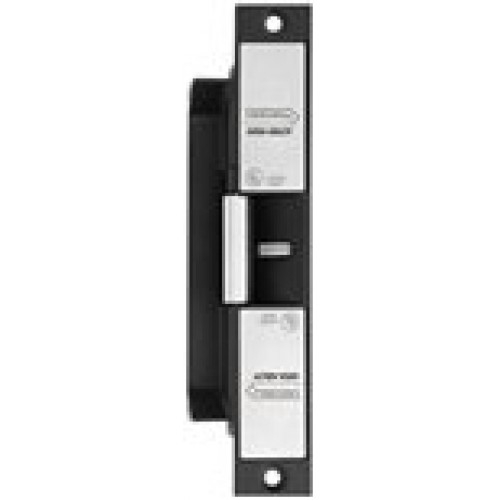

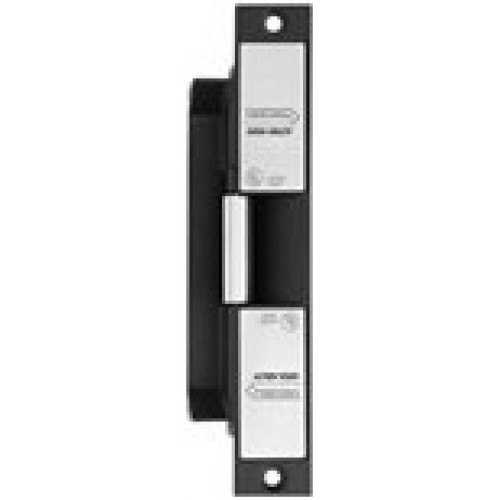

The ES200/2000 series is suitable for metal applications. ES200 Is unmonitored. ES2000 is the monitored version.
High Security
Stainless steel one part body and striker
Holding Force
1,350kg (3,000lb) - factory tested
Dual Monitoring
Solenoid and latch bolt. 3 amp change over contacts
Compact Shallow Body
27mm overall depth
Fixing Tab Option
Single fixing for metal - ES2000
Low Current Consumption
175mA - 12v DC continuous (±15%) 88mA - 24v DC continuous (±15%)
Patented Locking System
Shear line technology - incorporating 3 case hardened locking pins
Fire Safety
4 hour fire rating
Options
Unmonitored version - ES200. Lipless version - ES2000/200 only
Extension lips - 25mm and 50mm. Rebate plates - Standard 13mm
Spares
Solenoid kits - 12v DC and 24v DC. Replacement Pin kit
Approvals
UL1034 (highest level) Tested to 1-6 cycles
CE - BS EN 50081-1 and BS EN 50082-1
BS 5872
AC Compatibility (with RM1)
The Rectifier Sounder Module enables operation with AC voltages.The sounder can be set for either buzzing or silence with both AC and DC voltages. The IEC RM1 unit is continuously rated - max 1 amp.
